Virtual Commissioning: Facilitating Industrial Automation
Enterprise Resource Planning (ERP) systems are essential for modern warehouse and supply chain operations. Boehringer Ingelheim, a global pharmaceutical company, faced challenges in optimizing its logistics and warehouse operations. To address these issues, the company decided to use “virtual commissioning” as part of its SAP ERP implementation. This article explains how virtual commissioning works and what the benefits of this approach for Boehringer Ingelheim were.
What is a digital twin?
A digital twin is a copy of reality that mirrors real-world operations, allowing businesses to plan, test, and control scenarios and select the optimal configuration.
Using Enterprise Dynamics® from InControl, a Digital Twin of the warehouse was created. This allowed the company to test various “what-if” scenarios, analyze bottlenecks, and optimize processes before implementing changes in the real-world environment.
What is Virtual Commissioning?
Virtual commissioning is a cutting-edge approach that integrates digital simulation and emulation tools with industrial control systems. It is an integration of physical and digital worlds and it allows businesses to test, optimize, and validate material flow and logistics operations before actually deploying physical systems.

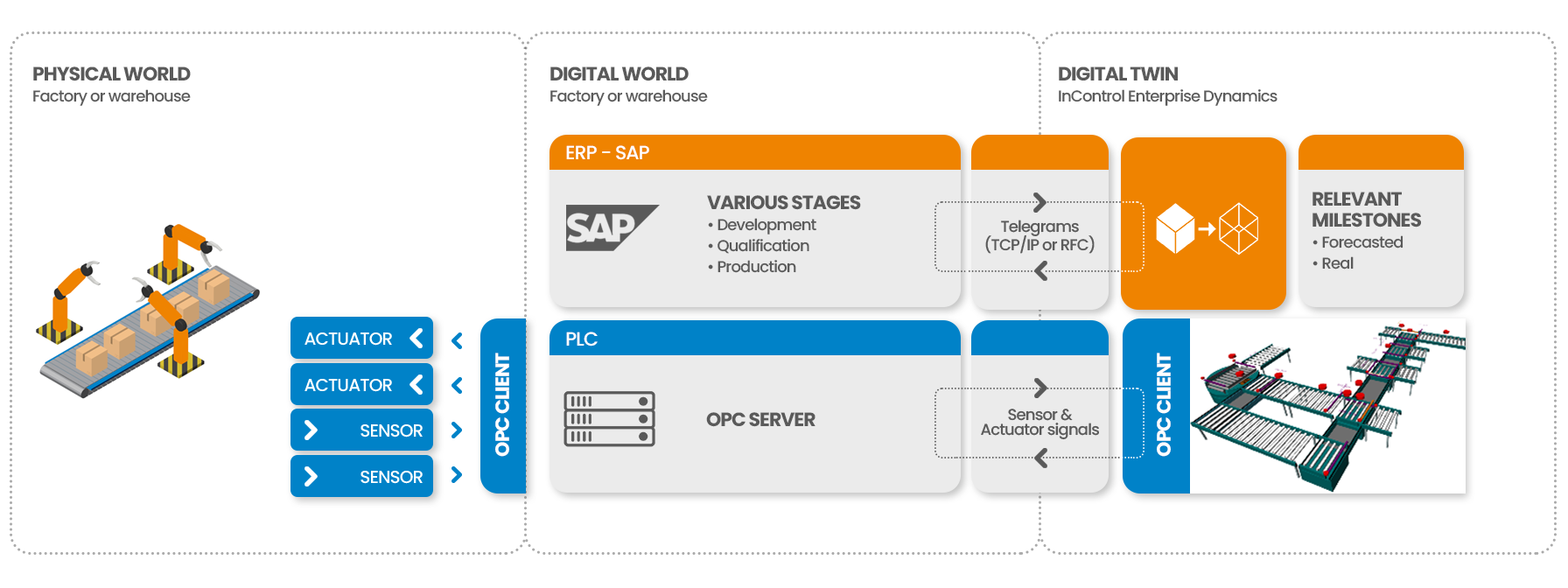

By creating a digital twin, virtual commissioning enables seamless interaction between enterprise resource planning (ERP) systems, material flow controllers (MFCs), and programmable logic controllers (PLCs), ensuring a smooth transition from design to operational execution. This removes the need to implement and test all the logic and communication between the ERP system on one side and the physical machines in the factory or warehouse.
How Virtual Commissioning Works
Virtual Commissioning is the process of testing and validating control systems, automation logic, and mechanical designs in a virtual environment before deploying them in the real world. Finding and solving bugs will happen much more efficiently in a digital environment instead of in – a more expensive – real production environment.
Testing Through Virtual Commissioning enabled Boehringer to:
- Conduct intensive testing of control software before deployment.
- Validate system performance and ensure seamless PLC (Programmable Logic Controller) integration.
- Identify and rectify errors early in the development phase, reducing the risk of costly post-deployment modifications.
SAP ERP Integration with Material Flow Control (MFC)

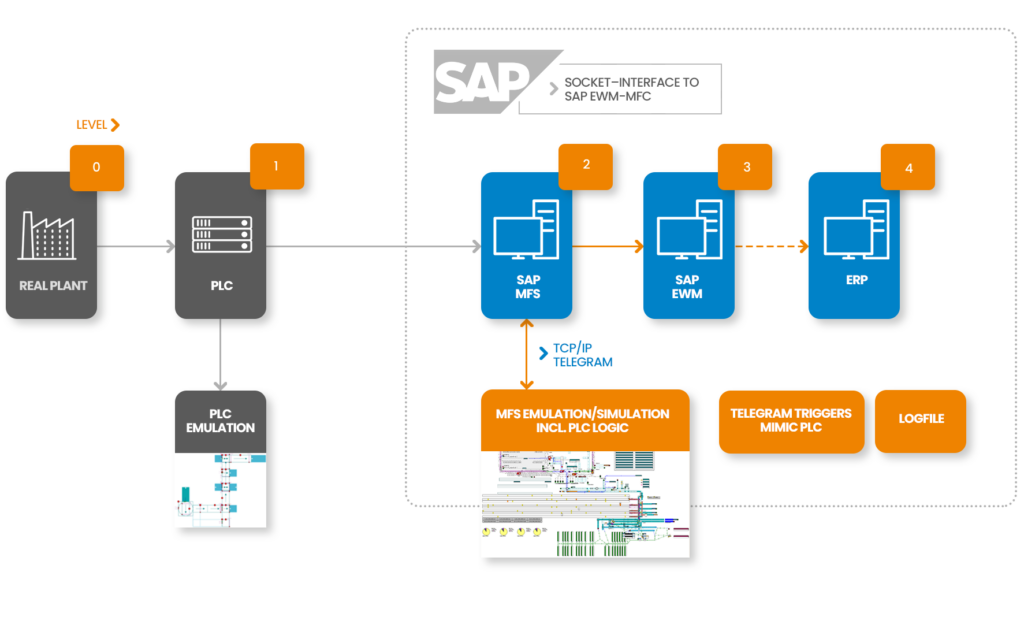

The SAP EWM-MFC (Extended Warehouse Management – Material Flow Control) system was integrated with the simulation model based on Enterprise Dynamics. The integration works as follows:
- A material flow computer (MFC) receives transport orders from ERP systems (e.g., SAP EWM-MFC) to manage inventory and warehouse logistics.
- Communication occurs at the telegram level, where transport orders define movements of loading devices within the system.
- The simulation model integrates PLC logic, allowing real-time testing and validation of control algorithms.
- Mixed simulation approaches enable hybrid testing by incorporating physical PLCs for some system areas while relying on digital models for others.
Business Benefits of Virtual Commissioning
Implementing virtual commissioning delivers significant advantages:
- Time Savings: Faster commissioning leads to earlier operational readiness, reducing downtime and expediting production launches.
- Cost Reduction: Businesses lower testing and commissioning expenses by identifying and resolving issues before deployment.
- Risk Mitigation: Simulated testing prevents costly errors, ensuring all system elements function as expected before physical implementation.
Real-World Application with InControl’s Digital Twin
InControl’s Enterprise Dynamics® platform facilitates virtual commissioning by integrating:
- Control Level: PLC logic and sensor-actuator interactions.
- Process Control Level: Material flow and system-wide data exchange.
- Production Control Level: Integration with ERP/MES systems for a seamless digital transformation.
This holistic approach enables businesses to simulate warehouse layouts, optimize logistics chains, and test automation solutions before physical implementation, leading to improved efficiency and reduced operational costs.
“
Implementing SAP in a live production environment comes with high demands and inherent risks. With InControl’s Digital Twin, we were able to thoroughly and risk-free test this complex process. This resulted in significant time and cost savings and a flawless commissioning.
Boehringer Pharma GmbH & Co. KG
Conclusion
The SAP EWM implementation at Boehringer, based on virtual commissioning and digital twin technology, sets a benchmark for modern warehouse and logistics optimization. Virtual commissioning reduces costs and time in SAP EWM implementations by bridging the gap between physical and digital operations. Companies leveraging this technology can achieve faster commissioning, lower resource consumption, and minimized downtime.
With Enterprise Dynamics® from InControl, businesses gain a competitive edge by enhancing reliability, scalability, and operational efficiency through data-driven decision-making. As industrial digitalization advances, virtual commissioning is set to become the standard solution for ERP implementations.
